Introducing the Docked SPL Meter Grid

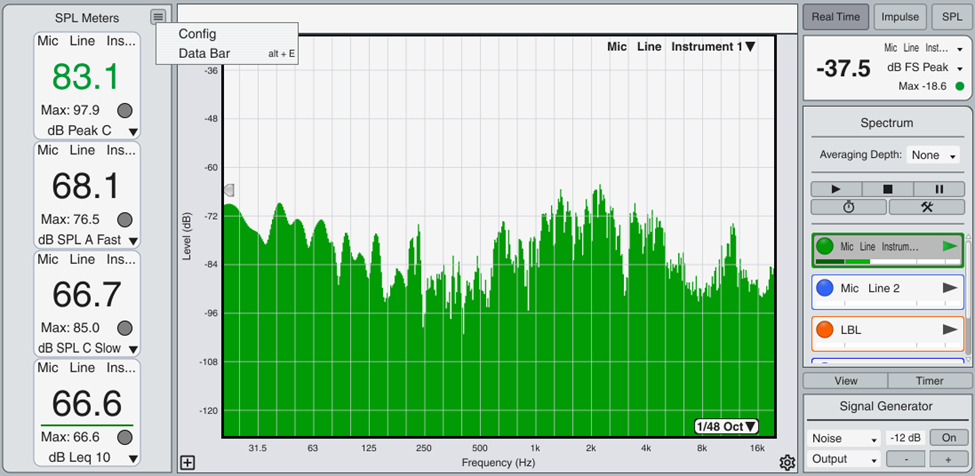

In addition to the floating SPL meter grid, Smaart has an alternate way to view SPL meters: a second, vertical meter grid that lives docked to the left side of the main graph area, regardless of mode or view. When selected, this "docked" SPL meter grid replaces the Data Bar.
This docked view defaults to 4 vertically stacked meters, which can expand to 5 or more when space is available. This is often determined by resolution. Selecting the hamburger menu above the meter grid reveals a "Config" option. This allows you to configure each meter's input, driver, and displayed name - just as you can with the floating meter grid config. This menu also has an option to switch back to the Data Bar, if desired.

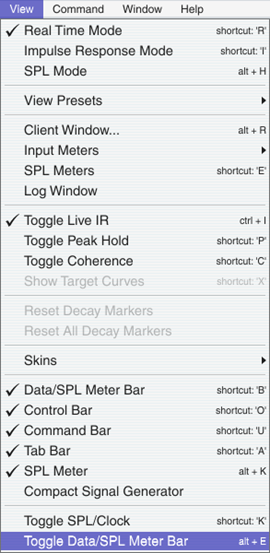

To view the docked SPL meter grid, you can either navigate to View > Toggle Data/SPL Meter Bar or use the newly added [Alt/Opt] + [E] hotkey. You can change back to the Data Bar at any time by using these same options as well as via the hamburger menu, as mentioned above.
